| Brand Name: | AWX |
| Model Number: | NJ205 NJ309UC NJ130 NJ2311 N1006 N1064 NN3020K NN3024 NU210 NU310 NU-1040E |
| MOQ: | 10pcs |
| Price: | 0.1-0.4usd |
| Packaging Details: | carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

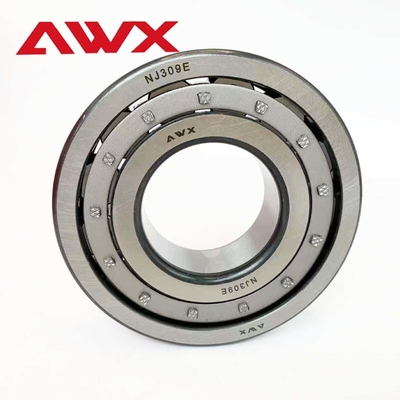

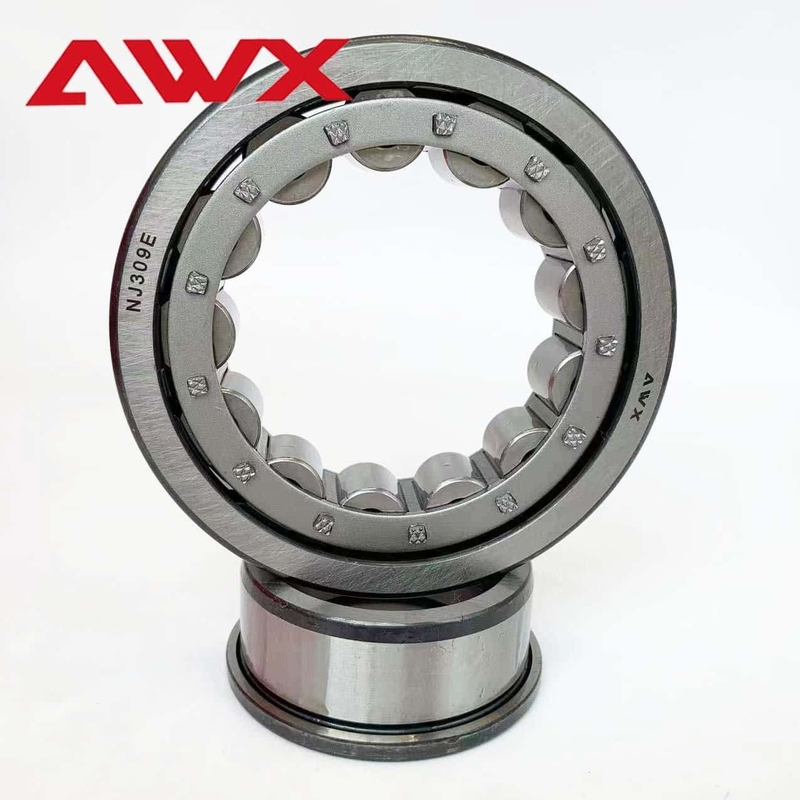

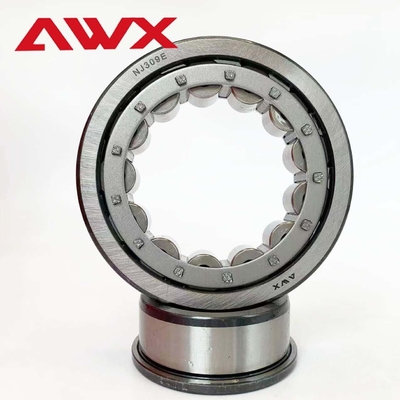

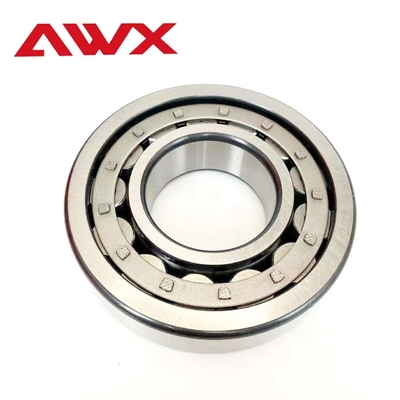

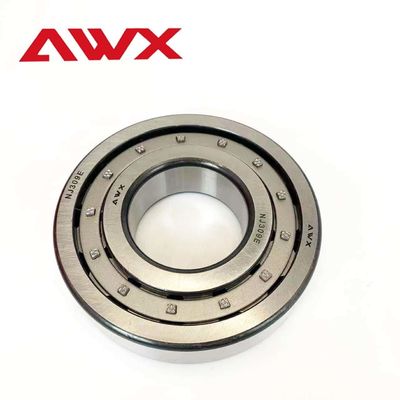

Cylindrical roller bearings are a type of rolling bearing that use cylindrical rollers as their primary rolling elements. This unique design provides them with high rigidity and a high load-bearing capacity, making them ideal for supporting large radial loads and certain axial loads.
The cylindrical shape of the roller allows for point contact between the roller and the raceway, resulting in very low frictional resistance. This enables the bearing to have a high rotational speed and handle high radial and axial loads efficiently. Furthermore, the versatility of cylindrical roller bearings makes them suitable for various applications in different industries.
These bearings are an indispensable component in many machines and equipment where precision, reliability, and high-load capacity are necessary.
1. Structure and design features
Fixed roller position: The main function of the cylindrical roller bearing steel retainer is to maintain the position of the roller, ensure that the roller is stably arranged inside the bearing, and reduce relative movement.
Parallel arrangement and spacing: The rollers are equipped with spacing retainers or isolation blocks. This design can effectively prevent the rollers from tilting or rubbing against each other, thereby reducing the increase in rotational torque.
2. Performance advantages
Strong load-bearing capacity: The cylindrical roller bearing steel retainer can support the rollers and withstand greater radial and axial loads, and is suitable for high-load and high-speed applications.
High precision: Due to the use of high-precision processing technology, the cylindrical roller bearing steel retainer can ensure the accuracy and stability of the bearing and provide precise operating performance.
Strong durability: Made of high-quality materials, the cylindrical roller bearing steel retainer can operate for a long time under extreme conditions and has high durability and reliability.
Low maintenance cost: Due to its long service life, the cylindrical roller bearing steel retainer can reduce maintenance costs and downtime, and improve the overall operating efficiency of the equipment.
3. Application scope and applicable conditions
Cylindrical roller bearing steel cages are widely used in large motors, machine tool spindles, axle boxes, diesel engine crankshafts, automobiles and other places that require high speed, high load and high precision. These applications usually require bearings to have excellent load-bearing capacity, stability and reliability, and cylindrical roller bearing steel cages are the key components to meet these requirements.
| No. | Type | BD | OD | Width | Weight | |||
| N | NF | NJ | NUP | (mm) | (mm) | (mm) | (kg) | |
| NU204E | N204E | NF204E | NJ204E | NUP204E | 20 | 47 | 14 | 0.117 |
| NU2204E | N2204E | NF2204E | NJ2204E | NUP2204E | 20 | 47 | 18 | 0.149 |
| NU2304E | N2304E | NF2304E | NJ2304E | NUP2304E | 20 | 52 | 21 | 0.216 |
| NU205E | N205E | NF205E | NJ205E | NUP205E | 25 | 52 | 15 | 0.14 |
| NU2205E | N2205E | NF2205E | NJ2205E | NUP2205E | 25 | 52 | 18 | 0.168 |
| NU2305E | N2305E | NF2305E | NJ2305E | NUP2305E | 25 | 62 | 24 | 0.355 |
| NU206E | N206E | NF206E | NJ206E | NUP206E | 30 | 62 | 16 | 0.214 |
| NU2206E | N2206E | NF2206E | NJ2206E | NUP2206E | 30 | 62 | 20 | 0.268 |
| NU2306E | N2306E | NF2306E | NJ2306E | NUP2306E | 30 | 72 | 27 | 0.538 |
| NU207E | N207E | NF207E | NJ207E | NUP207E | 35 | 72 | 17 | 0.311 |
| NU2207E | N2207E | NF2207E | NJ2207E | NUP2207E | 35 | 72 | 23 | 0.414 |
| NU2307E | N2307E | NF2307E | NJ2307E | NUP2307E | 35 | 80 | 31 | 0.738 |
| NU208E | N208E | NF208E | NJ208E | NUP208E | 40 | 80 | 18 | 0.394 |
| NU2208E | N2208E | NF2208E | NJ2208E | NUP2208E | 40 | 80 | 23 | 0.507 |
| NU2308E | N2308E | NF2308E | NJ2308E | NUP2308E | 40 | 90 | 33 | 0.974 |
| NU209E | N209E | NF209E | NJ209E | NUP209E | 45 | 85 | 19 | 0.45 |
| NU2209E | N2209E | NF2209E | NJ2209E | NUP2209E | 45 | 85 | 23 | 0.55 |
| NU2309E | N2309E | NF2309E | NJ2309E | NUP2309E | 45 | 100 | 36 | 1.34 |
| NU210E | N210E | NF210E | NJ210E | NUP210E | 50 | 90 | 20 | 0.505 |
| NU2210E | N2210E | NF2210E | NJ2210E | NUP2210E | 50 | 90 | 23 | 0.59 |
| NU2310E | N2310E | NF2310E | NJ2310E | NUP2310E | 50 | 110 | 40 | 1.79 |
| NU211E | N211E | NF211E | NJ211E | NUP211E | 55 | 100 | 21 | 0.68 |
| NU2311E | N2311E | NF2311E | NJ2311E | NUP2311E | 55 | 120 | 43 | 2.28 |
| NU212E | N212E | NF212E | NJ212E | NUP212E | 60 | 110 | 22 | 0.86 |
| NU2212E | N2212E | NF2212E | NJ2212E | NUP2212E | 60 | 110 | 28 | 1.12 |
| NU2312E | N2312E | NF2312E | NJ2312E | NUP2312E | 60 | 130 | 46 | 2.81 |
| NU213E | N213E | NF213E | NJ213E | NUP213E | 65 | 120 | 23 | 1.08 |
| NU2213E | N2213E | NF2213E | NJ2213E | NUP2213E | 65 | 120 | 31 | 1.48 |
| NU2313E | N2313E | NF2313E | NJ2313E | NUP2313E | 65 | 140 | 48 | 3.34 |
| NU214E | N214E | NF214E | NJ214E | NUP214E | 70 | 125 | 24 | 1.2 |
| NU2214E | N2214E | NF2214E | NJ2214E | NUP2214E | 70 | 125 | 31 | 1.56 |
| NU2314E | N2314E | NF2314E | NJ2314E | NUP2314E | 70 | 150 | 51 | 4.1 |
| NU215E | N215E | NF215E | NJ215E | NUP215E | 75 | 130 | 25 | 1.32 |
| NU2215E | N2215E | NF2215E | NJ2215E | NUP2215E | 75 | 130 | 31 | 1.64 |
| NU2315 | N2315 | NF2315 | NJ2315 | NUP2315 | 75 | 160 | 55 | 5.4 |
| NU216E | N216E | NF216E | NJ216E | NUP216E | 80 | 140 | 26 | 1.58 |
| NU2216E | N2216E | NF2216E | NJ2216E | NUP2216E | 80 | 140 | 33 | 2.05 |
| NU2316 | N2316 | NF2316 | NJ2316 | NUP2316 | 80 | 170 | 58 | 6.4 |
| NU217E | N217E | NF217E | NJ217E | NUP217E | 85 | 150 | 28 | 2 |
| NU2217E | N2217E | NF2217E | NJ2217E | NUP2217E | 85 | 150 | 36 | 2.58 |
| NU2317 | N2317 | NF2317 | NJ2317 | NUP2317 | 85 | 180 | 60 | 7.4 |
| NU218E | N218E | NF218E | NJ218E | NUP218E | 90 | 160 | 30 | 2.44 |
| NU2218E | N2218E | NF2218E | NJ2218E | NUP2218E | 90 | 160 | 40 | 3.26 |
| NU2318 | N2318 | NF2318 | NJ2318 | NUP2318 | 90 | 190 | 64 | 8.4 |
| NU219E | N219E | NF219E | NJ219E | NUP219E | 95 | 170 | 32 | 2.96 |
| NU2219E | N2219E | NF2219E | NJ2219E | NUP2219E | 95 | 170 | 43 | 3.97 |
| NU2319 | N2319 | NF2319 | NJ2319 | NUP2319 | 95 | 200 | 67 | 10.4 |
| NU220E | N220E | NF220E | NJ220E | NUP220E | 100 | 180 | 34 | 3.58 |
| NU2220E | N2220E | NF2220E | NJ2220E | NUP2220E | 100 | 180 | 46 | 4.86 |
| NU2320 | N2320 | NF2320 | NJ2320 | NUP2320 | 100 | 215 | 73 | 13.5 |
| NU221 | N221 | NF221 | NJ221 | NUP221 | 105 | 190 | 36 | 4 |
| NU222E | N222E | NF222E | NJ222E | NUP222E | 110 | 200 | 38 | 5.02 |
| NU2222 | N2222 | NF2222 | NJ2222 | NUP2222 | 110 | 200 | 53 | 7.5 |
| NU2322 | N2322 | NF2322 | NJ2322 | NUP2322 | 110 | 240 | 80 | 17.5 |
| NU224E | N224E | NF224E | NJ224E | NUP224E | 120 | 215 | 40 | 6.11 |
| NU2224 | N2224 | NF2224 | NJ2224 | NUP2224 | 120 | 215 | 58 | 9.5 |
| NU2324 | N2324 | NF2324 | NJ2324 | NUP2324 | 120 | 260 | 86 | 22.5 |
| NU226 | N226 | NF226 | NJ226 | NUP226 | 130 | 230 | 40 | 7 |
| NU2226 | N2226 | NF2226 | NJ2226 | NUP2226 | 130 | 230 | 64 | 11.5 |
| NU2326 | N2326 | NF2326 | NJ2326 | NUP2326 | 130 | 280 | 93 | 28.5 |
| NU228 | N228 | NF228 | NJ228 | NUP228 | 140 | 250 | 42 | 9.1 |
| NU2228 | N2228 | NF2228 | NJ2228 | NUP2228 | 140 | 250 | 68 | 15 |
| NU2328 | N2328 | NF2328 | NJ2328 | NUP2328 | 140 | 300 | 102 | 37 |
| NU230 | N230 | NF230 | NJ230 | NUP230 | 150 | 270 | 45 | 11 |
| NU2230 | N2230 | NF2230 | NJ2230 | NUP2230 | 150 | 270 | 73 | 17 |
| NU2330 | N2330 | NF2330 | NJ2330 | NUP2330 | 150 | 320 | 108 | 45 |
| NU232 | N232 | NF232 | NJ232 | NUP232 | 160 | 290 | 48 | 14 |
| NU2232 | N2232 | NF2232 | NJ2232 | NUP2232 | 160 | 290 | 80 | 25 |
| NU2332 | N2332 | NF2332 | NJ2332 | NUP2332 | 160 | 340 | 114 | 55.8 |
| NU234 | N234 | NF234 | NJ234 | NUP234 | 170 | 310 | 52 | 17.1 |
| NU2334 | N2334 | NF2334 | NJ2334 | NUP2334 | 170 | 360 | 120 | 63 |
| NU238 | N238 | NF238 | NJ238 | NUP238 | 190 | 340 | 55 | 23 |
| NU203M | N203M | NF203M | NJ203M | NUP203M | 17 | 40 | 12 | 0.08 |
| NU204M | N204M | NF204M | NJ204M | NUP204M | 20 | 47 | 14 | 0.133 |
| NU205M | N205M | NF205M | NJ205M | NUP205M | 25 | 52 | 15 | 0.155 |
| NU206M | N206M | NF206M | NJ206M | NUP206M | 30 | 62 | 16 | 0.24 |
| NU207M | N207M | NF207M | NJ207M | NUP207M | 35 | 72 | 17 | 0.344 |
| NU208M | N208M | NF208M | NJ208M | NUP208M | 40 | 80 | 18 | 0.439 |
| NU209M | N209M | NF209M | NJ209M | NUP209M | 45 | 85 | 19 | 0.523 |
| NU210M | N210M | NF210M | NJ210M | NUP210M | 50 | 90 | 20 | 0.578 |
| NU211M | N211M | NF211M | NJ211M | NUP211M | 55 | 100 | 21 | 0.691 |
| NU212M | N212M | NF212M | NJ212M | NUP212M | 60 | 110 | 22 | 0.95 |
| NU213M | N213M | NF213M | NJ213M | NUP213M | 65 | 120 | 23 | 1.16 |
| NU214M | N214M | NF214M | NJ214M | NUP214M | 70 | 125 | 24 | 1.34 |
| NU215M | N215M | NF215M | NJ215M | NUP215M | 75 | 130 | 25 | 1.4 |
| NU216M | N216M | NF216M | NJ216M | NUP216M | 80 | 140 | 26 | 1.76 |
| NU217M | N217M | NF217M | NJ217M | NUP217M | 85 | 150 | 28 | 2 |
| NU222M | N222M | NF222M | NJ222M | NUP222M | 110 | 200 | 38 | 5.11 |
| NU224M | N224M | NF224M | NJ224M | NUP224M | 120 | 215 | 40 | 6.47 |
| NU226M | N226M | NF226M | NJ226M | NUP226M | 130 | 230 | 40 | 7.34 |
| NU226E | N226E | NF226E | NJ226E | NUP226E | 130 | 230 | 40 | 7.26 |
| NU228M | N228M | NF228M | NJ228M | NUP228M | 140 | 250 | 42 | 9.1 |
| NU230M | N230M | NF230M | NJ230M | NUP230M | 150 | 270 | 45 | 11.7 |
| NU230E | N230E | NF230E | NJ230E | NUP230E | 150 | 270 | 45 | 11.2 |
| NU232M | N232M | NF232M | NJ232M | NUP232M | 160 | 290 | 48 | 14.2 |
| NU234M | N234M | NF234M | NJ234M | NUP234M | 170 | 310 | 52 | 18 |
| NU236M | N236M | NF236M | NJ236M | NUP236M | 180 | 320 | 52 | 19.6 |
| NU238M | N238M | NF238M | NJ238M | NUP238M | 190 | 340 | 55 | 22.6 |
| NU244M | N244M | NF244M | NJ244M | NUP244M | 220 | 400 | 65 | 38.9 |
| NU248M | N248M | NF248M | NJ248M | NUP248M | 240 | 440 | 72 | 48.2 |
| NU252M | N252M | NF252M | NJ252M | NUP252M | 260 | 480 | 80 | 70.3 |
| NU260M | N260M | NF260M | NJ260M | NUP260M | 300 | 540 | 85 | 87.2 |
| NU2206M | N2206M | NF2206M | NJ2206M | NUP2206M | 30 | 62 | 20 | 0.26 |
| NU2207M | N2207M | NF2207M | NJ2207M | NUP2207M | 35 | 72 | 23 | 0.4 |
| NU2208M | N2208M | NF2208M | NJ2208M | NUP2208M | 40 | 80 | 23 | 0.53 |
| NU2209M | N2209M | NF2209M | NJ2209M | NUP2209M | 45 | 85 | 23 | 0.54 |
| NU2210M | N2210M | NF2210M | NJ2210M | NUP2210M | 50 | 90 | 23 | 0.589 |
| NU2211M | N2211M | NF2211M | NJ2211M | NUP2211M | 55 | 100 | 25 | 0.773 |
| NU2212M | N2212M | NF2212M | NJ2212M | NUP2212M | 60 | 110 | 28 | 0.773 |
| NU2218M | N2218M | NF2218M | NJ2218M | NUP2218M | 90 | 160 | 40 | 3.68 |
Machinery manufacturing is the process of producing various machinery such as machine tools, transmissions and other related components. This industry is highly important in the manufacturing sector as it is responsible for producing a wide range of machines that are used in different industries.
The automotive industry is one of the largest industries in the world and relies heavily on machinery manufacturing. The machinery produced is used for manufacturing components such as wheel bearings, transmissions, differentials, and other essential parts used in automobiles.
Construction engineering involves the use of heavy equipment and machinery, including cranes, excavators, and bulldozers. Machinery manufacturing is a crucial component of the construction industry and plays a vital role in the construction of buildings, roads, and other infrastructure projects.
Mining and metallurgy industries are among the oldest and most significant industries in the world. Machinery manufacturing in this sector produces heavy-duty machinery, used for mining equipment and rolling mills. The machinery manufactured plays a critical role in the extraction, processing and transportation of minerals, ores and metals.
Product Packaging:

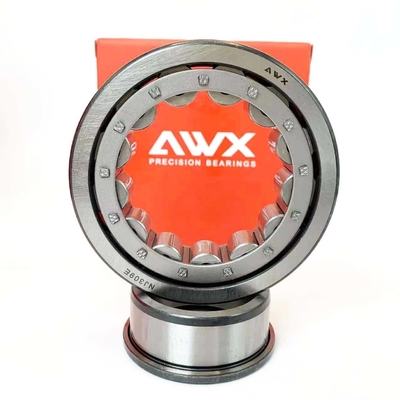

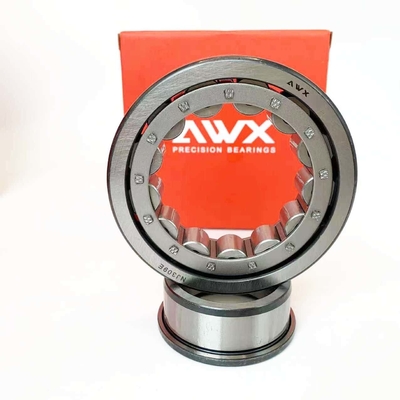

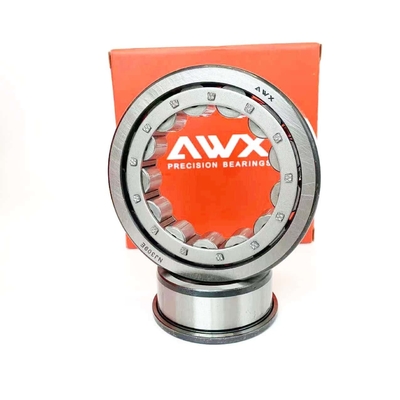

Our cylindrical roller bearings come individually packed in a protective plastic bag to prevent any damage during transportation. These bags are labeled with the product details, batch number, and manufacturing date for easy identification.
The bearings are then placed in a sturdy cardboard box with additional cushioning material to further protect them during shipping.
Shipping:
We ship our cylindrical roller bearings worldwide using reliable and efficient shipping companies. We offer various shipping options, including standard and expedited shipping, depending on the customer's preference.
All orders are processed within 24 hours of receipt, and customers will receive a tracking number to monitor the status of their shipment.
We take great care in ensuring that our products are delivered to our customers in a timely and safe manner.
|
| Brand Name: | AWX |
| Model Number: | NJ205 NJ309UC NJ130 NJ2311 N1006 N1064 NN3020K NN3024 NU210 NU310 NU-1040E |
| MOQ: | 10pcs |
| Price: | 0.1-0.4usd |
| Packaging Details: | carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Cylindrical roller bearings are a type of rolling bearing that use cylindrical rollers as their primary rolling elements. This unique design provides them with high rigidity and a high load-bearing capacity, making them ideal for supporting large radial loads and certain axial loads.
The cylindrical shape of the roller allows for point contact between the roller and the raceway, resulting in very low frictional resistance. This enables the bearing to have a high rotational speed and handle high radial and axial loads efficiently. Furthermore, the versatility of cylindrical roller bearings makes them suitable for various applications in different industries.
These bearings are an indispensable component in many machines and equipment where precision, reliability, and high-load capacity are necessary.
1. Structure and design features
Fixed roller position: The main function of the cylindrical roller bearing steel retainer is to maintain the position of the roller, ensure that the roller is stably arranged inside the bearing, and reduce relative movement.
Parallel arrangement and spacing: The rollers are equipped with spacing retainers or isolation blocks. This design can effectively prevent the rollers from tilting or rubbing against each other, thereby reducing the increase in rotational torque.
2. Performance advantages
Strong load-bearing capacity: The cylindrical roller bearing steel retainer can support the rollers and withstand greater radial and axial loads, and is suitable for high-load and high-speed applications.
High precision: Due to the use of high-precision processing technology, the cylindrical roller bearing steel retainer can ensure the accuracy and stability of the bearing and provide precise operating performance.
Strong durability: Made of high-quality materials, the cylindrical roller bearing steel retainer can operate for a long time under extreme conditions and has high durability and reliability.
Low maintenance cost: Due to its long service life, the cylindrical roller bearing steel retainer can reduce maintenance costs and downtime, and improve the overall operating efficiency of the equipment.
3. Application scope and applicable conditions
Cylindrical roller bearing steel cages are widely used in large motors, machine tool spindles, axle boxes, diesel engine crankshafts, automobiles and other places that require high speed, high load and high precision. These applications usually require bearings to have excellent load-bearing capacity, stability and reliability, and cylindrical roller bearing steel cages are the key components to meet these requirements.
| No. | Type | BD | OD | Width | Weight | |||
| N | NF | NJ | NUP | (mm) | (mm) | (mm) | (kg) | |
| NU204E | N204E | NF204E | NJ204E | NUP204E | 20 | 47 | 14 | 0.117 |
| NU2204E | N2204E | NF2204E | NJ2204E | NUP2204E | 20 | 47 | 18 | 0.149 |
| NU2304E | N2304E | NF2304E | NJ2304E | NUP2304E | 20 | 52 | 21 | 0.216 |
| NU205E | N205E | NF205E | NJ205E | NUP205E | 25 | 52 | 15 | 0.14 |
| NU2205E | N2205E | NF2205E | NJ2205E | NUP2205E | 25 | 52 | 18 | 0.168 |
| NU2305E | N2305E | NF2305E | NJ2305E | NUP2305E | 25 | 62 | 24 | 0.355 |
| NU206E | N206E | NF206E | NJ206E | NUP206E | 30 | 62 | 16 | 0.214 |
| NU2206E | N2206E | NF2206E | NJ2206E | NUP2206E | 30 | 62 | 20 | 0.268 |
| NU2306E | N2306E | NF2306E | NJ2306E | NUP2306E | 30 | 72 | 27 | 0.538 |
| NU207E | N207E | NF207E | NJ207E | NUP207E | 35 | 72 | 17 | 0.311 |
| NU2207E | N2207E | NF2207E | NJ2207E | NUP2207E | 35 | 72 | 23 | 0.414 |
| NU2307E | N2307E | NF2307E | NJ2307E | NUP2307E | 35 | 80 | 31 | 0.738 |
| NU208E | N208E | NF208E | NJ208E | NUP208E | 40 | 80 | 18 | 0.394 |
| NU2208E | N2208E | NF2208E | NJ2208E | NUP2208E | 40 | 80 | 23 | 0.507 |
| NU2308E | N2308E | NF2308E | NJ2308E | NUP2308E | 40 | 90 | 33 | 0.974 |
| NU209E | N209E | NF209E | NJ209E | NUP209E | 45 | 85 | 19 | 0.45 |
| NU2209E | N2209E | NF2209E | NJ2209E | NUP2209E | 45 | 85 | 23 | 0.55 |
| NU2309E | N2309E | NF2309E | NJ2309E | NUP2309E | 45 | 100 | 36 | 1.34 |
| NU210E | N210E | NF210E | NJ210E | NUP210E | 50 | 90 | 20 | 0.505 |
| NU2210E | N2210E | NF2210E | NJ2210E | NUP2210E | 50 | 90 | 23 | 0.59 |
| NU2310E | N2310E | NF2310E | NJ2310E | NUP2310E | 50 | 110 | 40 | 1.79 |
| NU211E | N211E | NF211E | NJ211E | NUP211E | 55 | 100 | 21 | 0.68 |
| NU2311E | N2311E | NF2311E | NJ2311E | NUP2311E | 55 | 120 | 43 | 2.28 |
| NU212E | N212E | NF212E | NJ212E | NUP212E | 60 | 110 | 22 | 0.86 |
| NU2212E | N2212E | NF2212E | NJ2212E | NUP2212E | 60 | 110 | 28 | 1.12 |
| NU2312E | N2312E | NF2312E | NJ2312E | NUP2312E | 60 | 130 | 46 | 2.81 |
| NU213E | N213E | NF213E | NJ213E | NUP213E | 65 | 120 | 23 | 1.08 |
| NU2213E | N2213E | NF2213E | NJ2213E | NUP2213E | 65 | 120 | 31 | 1.48 |
| NU2313E | N2313E | NF2313E | NJ2313E | NUP2313E | 65 | 140 | 48 | 3.34 |
| NU214E | N214E | NF214E | NJ214E | NUP214E | 70 | 125 | 24 | 1.2 |
| NU2214E | N2214E | NF2214E | NJ2214E | NUP2214E | 70 | 125 | 31 | 1.56 |
| NU2314E | N2314E | NF2314E | NJ2314E | NUP2314E | 70 | 150 | 51 | 4.1 |
| NU215E | N215E | NF215E | NJ215E | NUP215E | 75 | 130 | 25 | 1.32 |
| NU2215E | N2215E | NF2215E | NJ2215E | NUP2215E | 75 | 130 | 31 | 1.64 |
| NU2315 | N2315 | NF2315 | NJ2315 | NUP2315 | 75 | 160 | 55 | 5.4 |
| NU216E | N216E | NF216E | NJ216E | NUP216E | 80 | 140 | 26 | 1.58 |
| NU2216E | N2216E | NF2216E | NJ2216E | NUP2216E | 80 | 140 | 33 | 2.05 |
| NU2316 | N2316 | NF2316 | NJ2316 | NUP2316 | 80 | 170 | 58 | 6.4 |
| NU217E | N217E | NF217E | NJ217E | NUP217E | 85 | 150 | 28 | 2 |
| NU2217E | N2217E | NF2217E | NJ2217E | NUP2217E | 85 | 150 | 36 | 2.58 |
| NU2317 | N2317 | NF2317 | NJ2317 | NUP2317 | 85 | 180 | 60 | 7.4 |
| NU218E | N218E | NF218E | NJ218E | NUP218E | 90 | 160 | 30 | 2.44 |
| NU2218E | N2218E | NF2218E | NJ2218E | NUP2218E | 90 | 160 | 40 | 3.26 |
| NU2318 | N2318 | NF2318 | NJ2318 | NUP2318 | 90 | 190 | 64 | 8.4 |
| NU219E | N219E | NF219E | NJ219E | NUP219E | 95 | 170 | 32 | 2.96 |
| NU2219E | N2219E | NF2219E | NJ2219E | NUP2219E | 95 | 170 | 43 | 3.97 |
| NU2319 | N2319 | NF2319 | NJ2319 | NUP2319 | 95 | 200 | 67 | 10.4 |
| NU220E | N220E | NF220E | NJ220E | NUP220E | 100 | 180 | 34 | 3.58 |
| NU2220E | N2220E | NF2220E | NJ2220E | NUP2220E | 100 | 180 | 46 | 4.86 |
| NU2320 | N2320 | NF2320 | NJ2320 | NUP2320 | 100 | 215 | 73 | 13.5 |
| NU221 | N221 | NF221 | NJ221 | NUP221 | 105 | 190 | 36 | 4 |
| NU222E | N222E | NF222E | NJ222E | NUP222E | 110 | 200 | 38 | 5.02 |
| NU2222 | N2222 | NF2222 | NJ2222 | NUP2222 | 110 | 200 | 53 | 7.5 |
| NU2322 | N2322 | NF2322 | NJ2322 | NUP2322 | 110 | 240 | 80 | 17.5 |
| NU224E | N224E | NF224E | NJ224E | NUP224E | 120 | 215 | 40 | 6.11 |
| NU2224 | N2224 | NF2224 | NJ2224 | NUP2224 | 120 | 215 | 58 | 9.5 |
| NU2324 | N2324 | NF2324 | NJ2324 | NUP2324 | 120 | 260 | 86 | 22.5 |
| NU226 | N226 | NF226 | NJ226 | NUP226 | 130 | 230 | 40 | 7 |
| NU2226 | N2226 | NF2226 | NJ2226 | NUP2226 | 130 | 230 | 64 | 11.5 |
| NU2326 | N2326 | NF2326 | NJ2326 | NUP2326 | 130 | 280 | 93 | 28.5 |
| NU228 | N228 | NF228 | NJ228 | NUP228 | 140 | 250 | 42 | 9.1 |
| NU2228 | N2228 | NF2228 | NJ2228 | NUP2228 | 140 | 250 | 68 | 15 |
| NU2328 | N2328 | NF2328 | NJ2328 | NUP2328 | 140 | 300 | 102 | 37 |
| NU230 | N230 | NF230 | NJ230 | NUP230 | 150 | 270 | 45 | 11 |
| NU2230 | N2230 | NF2230 | NJ2230 | NUP2230 | 150 | 270 | 73 | 17 |
| NU2330 | N2330 | NF2330 | NJ2330 | NUP2330 | 150 | 320 | 108 | 45 |
| NU232 | N232 | NF232 | NJ232 | NUP232 | 160 | 290 | 48 | 14 |
| NU2232 | N2232 | NF2232 | NJ2232 | NUP2232 | 160 | 290 | 80 | 25 |
| NU2332 | N2332 | NF2332 | NJ2332 | NUP2332 | 160 | 340 | 114 | 55.8 |
| NU234 | N234 | NF234 | NJ234 | NUP234 | 170 | 310 | 52 | 17.1 |
| NU2334 | N2334 | NF2334 | NJ2334 | NUP2334 | 170 | 360 | 120 | 63 |
| NU238 | N238 | NF238 | NJ238 | NUP238 | 190 | 340 | 55 | 23 |
| NU203M | N203M | NF203M | NJ203M | NUP203M | 17 | 40 | 12 | 0.08 |
| NU204M | N204M | NF204M | NJ204M | NUP204M | 20 | 47 | 14 | 0.133 |
| NU205M | N205M | NF205M | NJ205M | NUP205M | 25 | 52 | 15 | 0.155 |
| NU206M | N206M | NF206M | NJ206M | NUP206M | 30 | 62 | 16 | 0.24 |
| NU207M | N207M | NF207M | NJ207M | NUP207M | 35 | 72 | 17 | 0.344 |
| NU208M | N208M | NF208M | NJ208M | NUP208M | 40 | 80 | 18 | 0.439 |
| NU209M | N209M | NF209M | NJ209M | NUP209M | 45 | 85 | 19 | 0.523 |
| NU210M | N210M | NF210M | NJ210M | NUP210M | 50 | 90 | 20 | 0.578 |
| NU211M | N211M | NF211M | NJ211M | NUP211M | 55 | 100 | 21 | 0.691 |
| NU212M | N212M | NF212M | NJ212M | NUP212M | 60 | 110 | 22 | 0.95 |
| NU213M | N213M | NF213M | NJ213M | NUP213M | 65 | 120 | 23 | 1.16 |
| NU214M | N214M | NF214M | NJ214M | NUP214M | 70 | 125 | 24 | 1.34 |
| NU215M | N215M | NF215M | NJ215M | NUP215M | 75 | 130 | 25 | 1.4 |
| NU216M | N216M | NF216M | NJ216M | NUP216M | 80 | 140 | 26 | 1.76 |
| NU217M | N217M | NF217M | NJ217M | NUP217M | 85 | 150 | 28 | 2 |
| NU222M | N222M | NF222M | NJ222M | NUP222M | 110 | 200 | 38 | 5.11 |
| NU224M | N224M | NF224M | NJ224M | NUP224M | 120 | 215 | 40 | 6.47 |
| NU226M | N226M | NF226M | NJ226M | NUP226M | 130 | 230 | 40 | 7.34 |
| NU226E | N226E | NF226E | NJ226E | NUP226E | 130 | 230 | 40 | 7.26 |
| NU228M | N228M | NF228M | NJ228M | NUP228M | 140 | 250 | 42 | 9.1 |
| NU230M | N230M | NF230M | NJ230M | NUP230M | 150 | 270 | 45 | 11.7 |
| NU230E | N230E | NF230E | NJ230E | NUP230E | 150 | 270 | 45 | 11.2 |
| NU232M | N232M | NF232M | NJ232M | NUP232M | 160 | 290 | 48 | 14.2 |
| NU234M | N234M | NF234M | NJ234M | NUP234M | 170 | 310 | 52 | 18 |
| NU236M | N236M | NF236M | NJ236M | NUP236M | 180 | 320 | 52 | 19.6 |
| NU238M | N238M | NF238M | NJ238M | NUP238M | 190 | 340 | 55 | 22.6 |
| NU244M | N244M | NF244M | NJ244M | NUP244M | 220 | 400 | 65 | 38.9 |
| NU248M | N248M | NF248M | NJ248M | NUP248M | 240 | 440 | 72 | 48.2 |
| NU252M | N252M | NF252M | NJ252M | NUP252M | 260 | 480 | 80 | 70.3 |
| NU260M | N260M | NF260M | NJ260M | NUP260M | 300 | 540 | 85 | 87.2 |
| NU2206M | N2206M | NF2206M | NJ2206M | NUP2206M | 30 | 62 | 20 | 0.26 |
| NU2207M | N2207M | NF2207M | NJ2207M | NUP2207M | 35 | 72 | 23 | 0.4 |
| NU2208M | N2208M | NF2208M | NJ2208M | NUP2208M | 40 | 80 | 23 | 0.53 |
| NU2209M | N2209M | NF2209M | NJ2209M | NUP2209M | 45 | 85 | 23 | 0.54 |
| NU2210M | N2210M | NF2210M | NJ2210M | NUP2210M | 50 | 90 | 23 | 0.589 |
| NU2211M | N2211M | NF2211M | NJ2211M | NUP2211M | 55 | 100 | 25 | 0.773 |
| NU2212M | N2212M | NF2212M | NJ2212M | NUP2212M | 60 | 110 | 28 | 0.773 |
| NU2218M | N2218M | NF2218M | NJ2218M | NUP2218M | 90 | 160 | 40 | 3.68 |
Machinery manufacturing is the process of producing various machinery such as machine tools, transmissions and other related components. This industry is highly important in the manufacturing sector as it is responsible for producing a wide range of machines that are used in different industries.
The automotive industry is one of the largest industries in the world and relies heavily on machinery manufacturing. The machinery produced is used for manufacturing components such as wheel bearings, transmissions, differentials, and other essential parts used in automobiles.
Construction engineering involves the use of heavy equipment and machinery, including cranes, excavators, and bulldozers. Machinery manufacturing is a crucial component of the construction industry and plays a vital role in the construction of buildings, roads, and other infrastructure projects.
Mining and metallurgy industries are among the oldest and most significant industries in the world. Machinery manufacturing in this sector produces heavy-duty machinery, used for mining equipment and rolling mills. The machinery manufactured plays a critical role in the extraction, processing and transportation of minerals, ores and metals.
Product Packaging:
Our cylindrical roller bearings come individually packed in a protective plastic bag to prevent any damage during transportation. These bags are labeled with the product details, batch number, and manufacturing date for easy identification.
The bearings are then placed in a sturdy cardboard box with additional cushioning material to further protect them during shipping.
Shipping:
We ship our cylindrical roller bearings worldwide using reliable and efficient shipping companies. We offer various shipping options, including standard and expedited shipping, depending on the customer's preference.
All orders are processed within 24 hours of receipt, and customers will receive a tracking number to monitor the status of their shipment.
We take great care in ensuring that our products are delivered to our customers in a timely and safe manner.
