| Brand Name: | AWX |
| Model Number: | 52221 52222 52223 52224 |
| MOQ: | 10 |
| Price: | 0.1-0.4usd |
| Packaging Details: | single box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

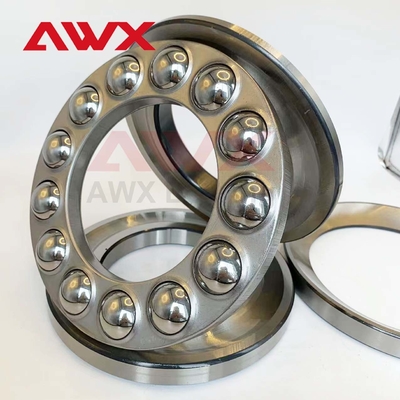

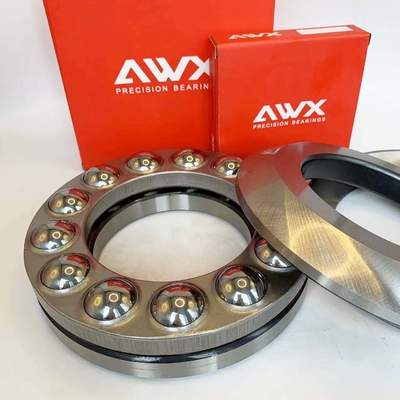

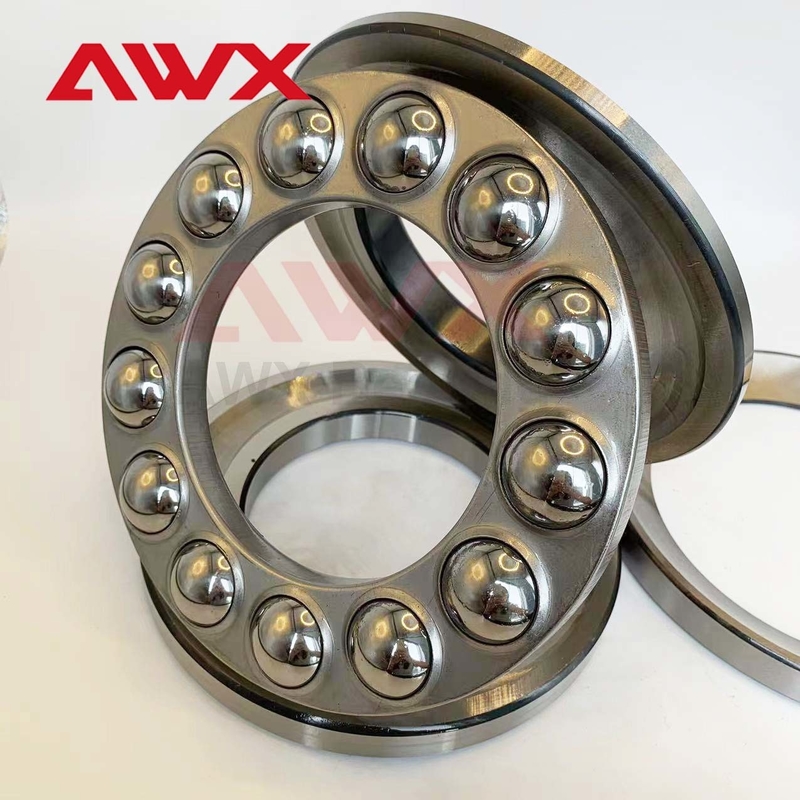

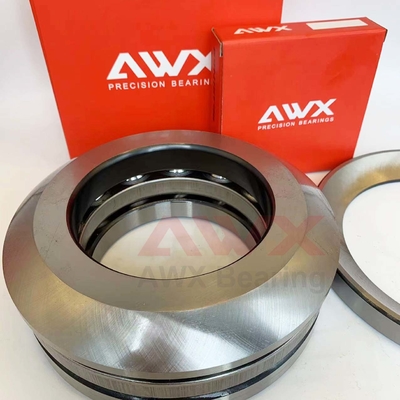

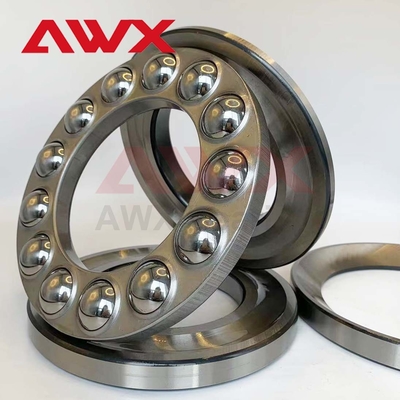

Our ball thrust bearing is designed to withstand axial loads and is commonly used in applications where axial loads are present. With a steel cage material, this bearing ensures durability and longevity, even in the most demanding environments.
With a stock quantity of 125 pieces, we can provide you with the necessary quantities for your production needs.
Don't settle for subpar bearings that will wear down quickly and cause production delays. Trust our thrust radial ball bearing to keep your machines running smoothly and efficiently.
| Model | Basic Dimensions (mm) | Basic Dynamic load rating (kn) | Rated Speed ( r/min) | Related products | |||||
| d[mm] | D[mm] | H[mm] | H1[mm] | Trends | static state | Reference speed | Limiting Speeds | Seat cushion ring | |
| 53201 | 12 | 28 | 11.4 | 13 | 13.3 | 20.8 | 8 000 | 11 000 | U 201 |
| 53202 | 15 | 32 | 13.3 | 15 | 15.9 | 25 | 7 000 | 10 000 | U 202 |
| 53203 | 17 | 35 | 13.2 | 15 | 16.3 | 27 | 6 700 | 9 500 | U 203 |
| 53204 | 20 | 40 | 14.7 | 17 | 21.2 | 37.5 | 5 600 | 8 000 | U 204 |
| 53205 | 25 | 47 | 16.7 | 19 | 26.5 | 50 | 5 000 | 7 000 | U 205 |
| 53206 | 30 | 52 | 17.8 | 20 | 25.1 | 51 | 4 500 | 6 300 | U 206 |
| 53207 | 35 | 62 | 19.9 | 22 | 35.1 | 73.5 | 4 000 | 5 600 | U 207 |
| 53208 | 40 | 68 | 20.3 | 23 | 44.2 | 96.5 | 3 600 | 5 300 | U 208 |
| 53209 | 45 | 73 | 21.3 | 24 | 39 | 86.5 | 3 400 | 4 800 | U 209 |
| 53210 | 50 | 78 | 23.5 | 26 | 49.4 | 116 | 3 200 | 4 500 | U 210 |
| 53211 | 55 | 90 | 27.3 | 30 | 58.5 | 134 | 2 800 | 3 800 | U 211 |
| 53212 | 60 | 95 | 28 | 31 | 59.2 | 140 | 2 600 | 3 600 | U 212 |
| 53213 | 65 | 100 | 28.7 | 32 | 60.5 | 150 | 2 600 | 3 600 | U 213 |
| 53214 | 70 | 105 | 28.8 | 32 | 62.4 | 160 | 2 600 | 3 600 | U 214 |
| 53215 | 75 | 110 | 28.3 | 32 | 63.7 | 170 | 2 400 | 3 400 | U 215 |
| 53216 | 80 | 115 | 29.5 | 33 | 76.1 | 208 | 2 400 | 3 200 | U 216 |
| 53217 | 85 | 125 | 33.1 | 37 | 97.5 | 275 | 2 000 | 3 000 | U 217 |
| 53218 | 90 | 135 | 38.5 | 42 | 112 | 290 | 1 900 | 2 600 | U 218 |
| 53220 | 100 | 150 | 40.9 | 45 | 119 | 325 | 1 700 | 2 400 | U 220 |
Design Structure:
Thrust ball bearings consist of two grooved rings: an outer ring and an inner ring. They also contain a cage or separator that holds the balls in place. There are two designs available: single-direction and double-direction, which allow axial loads to be supported in one or both directions.
Load Capacity:
Thrust ball bearings are primarily designed to handle axial loads - forces parallel to the shaft. They are not suitable for radial loads.
Type of Balls:
These bearings typically use steel or ceramic balls. The smooth surface of these high-strength balls ensures low friction and efficient operation.
Material:
Thrust ball bearings are commonly made from high-quality carbon steel or stainless steel. These materials enhance their fatigue resistance and overall lifespan.
Speed Limitations:
Thrust ball bearings are generally not suitable for high-speed applications. Their operational speed is usually limited when compared to other types of bearings.
Application:
Thrust ball bearings are widely used in machinery that requires precise axial positioning. This includes screw drives, automotive applications such as clutches and gear assemblies, and specialized equipment such as machine tools.
Installation:
Care must be taken during installation to ensure proper alignment and clearance for optimal performance.
Lubrication:
Thrust ball bearings require adequate lubrication, such as oil or grease, to minimize friction and wear and to dissipate heat. This ensures smooth operation.
Temperature Tolerance:
Thrust ball bearings can operate within a specific temperature range, which is influenced by the type of lubricant used. Excessive heat can lead to premature bearing failure.
Maintenance:
Regular maintenance, including inspection and re-lubrication, is crucial to prolonging the life of the bearing and ensuring efficient operation.
Automotive: Components in clutch assemblies, gearboxes, and transmission systems require support for axial loads and correct positioning.
Aerospace: Precise control of axial loads in aircraft engines and landing gear systems is critical for safety and performance.
Industrial Machinery: Handling high-precision axial loads is essential for milling machines, lathes, and other equipment, especially during machining operations.
Renewable Energy: Wind turbines use axial load bearings to support rotor assemblies and manage wind forces acting on the turbine blades.
Construction Equipment: Efficient load handling and stability are necessary in cranes and excavators, which incorporate axial load bearings in axles and support structures.
Marine: Ship propulsion systems rely on axial thrust load bearings to manage axial thrust loads for effective functioning of propellers and thrusters.
Railways: Train brake systems and wheel assemblies require bearing support for axial forces to ensure operational safety.
Pumps and Compressors: Centrifugal pumps and compressors accommodate axial loads from rotating elements with the help of bearings.
Textile Machinery: Spinning and weaving machines rely on axial load bearings to ensure precise control of moving parts under axial loads.
Electrical Equipment: Electric motors and generators require bearings to manage axial loads, maintain alignment, and ensure performance.
Product Packaging:
Shipping:
Q: What is the brand name of the thrust ball bearing?
A: The brand name of this thrust ball bearing is AWX.
Q: What is the model number of this product?
A: The model number of this product is 52205.
Q: Where is this product made?
A: This product is made in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 10.
Q: What is the price range of this product?
A: The price range of this product is between 0.1-0.4 USD.
Q: What is the packaging details of this product?
A: The packaging details of this product is single box.
Q: What is the delivery time for this product?
A: The delivery time for this product is 30 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this product?
A: The supply ability of this product is 10000pcs.
|
