| Brand Name: | AWX |
| Model Number: | 22313CC/W33 22314CC/W33 22315CC/W33 |
| MOQ: | 10PCS |
| Price: | Negotiate |
| Packaging Details: | single box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

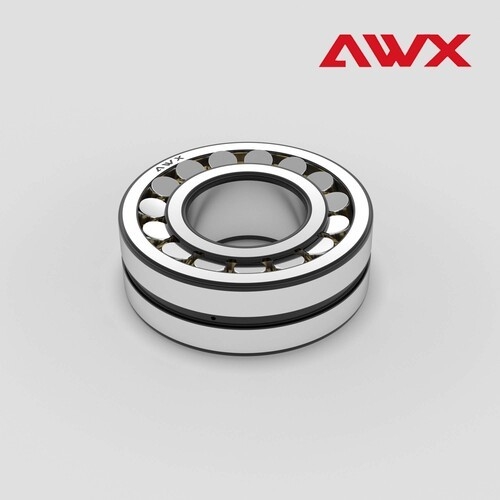

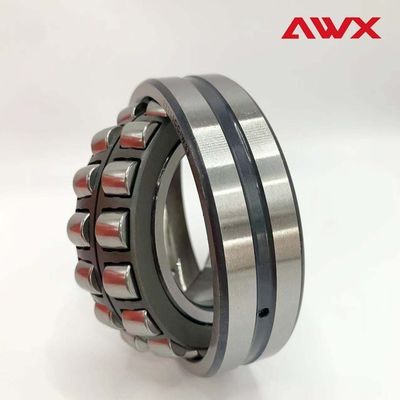

22313CC/W33 22314CC/W33 22315CC/W33 Steel Spherical Roller Bearing Double Row Automatic Self-Aligning Roller Bearings
Spherical roller bearings have the capability to withstand significant radial loads as well as certain axial loads. These types of bearings have the special ability to automatically align their centers, as the centers of the inner and outer rings can be tilted to the axis.
Spherical roller bearings feature double-row rollers and a customary spherical raceway on the outer ring, as well as two raceways on the inner ring. These raceways are tilted at an angle relative to the bearing axis. This structure enables the bearing to adjust automatically for the axis misalignment caused by deflection or non-concentricity of the shaft or housing.
With such a structure, spherical roller bearings have excellent aligning performance. They can automatically adjust their axis misalignment without negatively affecting their performance.
The design of spherical roller bearings enables them to have several important properties, including:
The spherical roller bearing has the unique ability to automatically self-align. This property is due to the presence of a spherical raceway between the inner and outer rings of the bearing. Even if the shaft or housing is deflected or not concentric, the bearing can adjust the deviation of the axis and maintain stable operation. This automatic self-aligning property greatly reduces the requirements for installation accuracy and prolongs the service life of the bearing.
Spherical roller bearings can withstand large radial loads and certain axial loads. This is thanks to their double-row roller structure and the spherical raceway design between the inner and outer rings. These features enable the bearing to maintain stable operation when bearing heavy loads, disperse the load effectively and reduce the stress concentration of the bearing.
The automatic self-aligning and high load-bearing capacity of spherical roller bearings make them highly stable and durable when bearing impact loads. This feature makes the spherical roller bearing particularly suitable for mechanical equipment that needs to withstand impact loads.
The inner hole of spherical roller bearings is cylindrical or conical. Additionally, the tapered inner hole bearing can be equipped with a tightening sleeve or a withdrawal sleeve, which can easily assemble it on a smooth shaft or a stepped machine shaft. This design enables the spherical roller bearing to adapt to a variety of installation requirements and improves its applicability.
The spherical roller bearing maintains a stable state during operation, which reduces vibration and noise. This helps to improve the operating efficiency and service life of mechanical equipment, while also reducing noise pollution to the surrounding environment.
Disassembling and installing a spherical roller bearing are relatively simple and easy to maintain. When replacement or maintenance is required, it can be done quickly, reducing downtime and maintenance costs.
| Model | Inner Diameter | Outer Diameter | Height |
|---|---|---|---|
| 22313CC/W33 | 65 mm | 140mm | 48 mm |
| 22314CC/W33 | 70 mm | 150 mm | 51 mm |
| 22315CC/W33 | 75 mm | 160 mm | 55 mm |
Spherical roller bearings are highly versatile components that have wide-ranging applications in multiple industrial fields. They are an essential part of machinery that needs to support and drive various rollers. The following is a summary of their main application areas, as found in the reference article:
The widespread use of spherical roller bearings is largely due to their unique self-aligning ability, high load capacity and good stability. These characteristics enable spherical roller bearings to remain functional in various complex working environments, and accordingly, they play an important role in multiple industrial fields.
Our delivery time is 30 days and we accept various payment terms such as L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Our supply ability is 10000pcs to ensure that we can meet your demands. Our packing is a single box for ease of transport and handling.
Our AWX Spherical Roller Bearings have an inside diameter of 110mm and an inner diameter of 190mm. We offer various vibration levels including V1, V2, and V3. Our bearings are designed to handle both radial and axial load direction making them the perfect sphered outer ring bearing and alignment roller bearing for your needs!
|
