| Brand Name: | AWX |
| Model Number: | UD203 UD204 UD205 UD206 UD207 |
| MOQ: | 10PCS |
| Price: | 0.01-0.4 USD |
| Packaging Details: | single box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

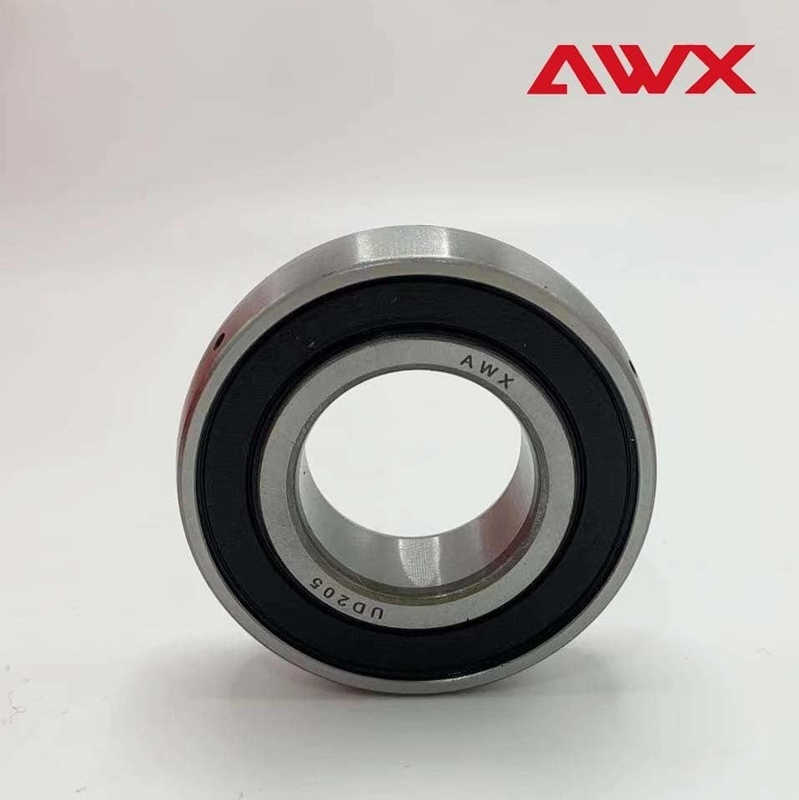

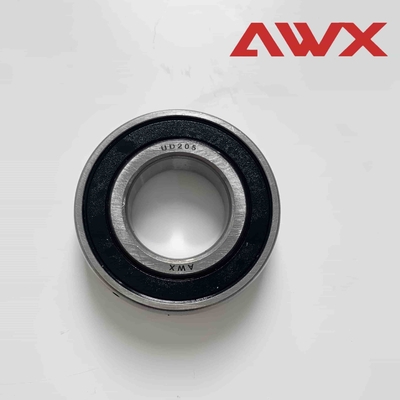

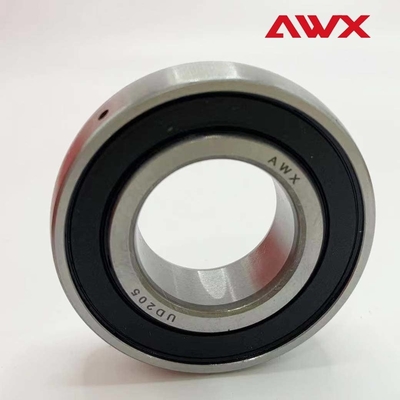

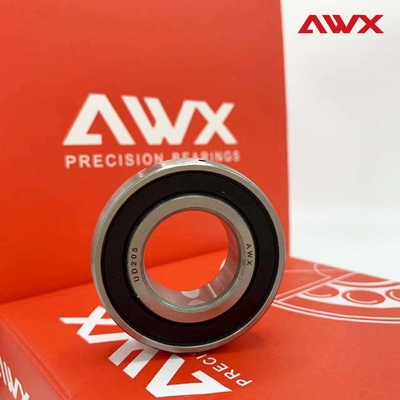

UD203 UD204 UD205 UD206 UD207 GCR15 Pillow Block Insert Bearing Contact Seal Bearings
The UD series spherical bearings are a unique type of product with a specific design intended primarily to support rotational motion. These bearings have the capability to self-adjust in case of misalignment between the shaft and the housing where they are installed. They are highly practical and suitable for various applications due to their compact design and ease-of-installation.
The compact design of the UD series spherical bearings makes them a versatile option for many applications, especially those with high load capacity and self-adjustment function requirements. These bearings can handle heavier loads than typical bearings because of their design, which provides an excellent level of support.
The UD series spherical bearings are also highly convenient for use in applications with misalignment between the shaft and the housing. Their design allows for self-adjustment to accommodate such situations, reducing potential damage and increasing the lifespan of the bearings.
UD series spherical bearings offer a practical solution for supporting rotational motion in different applications that require high load capacity and self-adjustment function. Their compact design allows for versatility and ease-of-installation. Additionally, these bearings can self-adjust to reduce potential damage caused by misalignment between the shaft and the housing, making them the perfect choice for challenging applications.
The most notable feature of the UD series of outer spherical bearings is its design. The outer ring's diameter is spherical, so it can easily match the concave spherical surface of the bearing seat. This specific design ensures that the bearing adjusts for any deviation between the axis and bearing during operation. Due to this design, the bearing remains stable and reliable throughout the operation.
The UD series of outer spherical bearings are known for their amazing sealing performance. This feature successfully prevents external dust, moisture, and pollutants from penetrating the bearing and extending the overall service life.
The automatic self-aligning characteristics of the UD series of outer spherical bearings enable them to adapt to various installation errors and shaft deformations. The high flexibility in installation and maintenance makes the UD series an excellent option.
| Model | Inner Diameter | Outer Diameter | Width |
| UD203 | 17mm | 42mm | 13mm |
| UD204 | 20mm | 47mm | 14mm |
| UD205 | 25mm | 52mm | 15mm |
| UD206 | 30mm | 62mm | 16mm |
| UD207 | 35mm | 72mm | 17mm |
UD series outer spherical bearings are widely used in various industries such as industrial machinery, agricultural and forestry machinery, automobiles, and heavy vehicles. These bearings are highly versatile and can withstand a range of different loads and impacts to ensure the smooth operation of various equipment.
UD series outer spherical bearings are commonly used in high-speed equipment such as textile machinery, food processing machinery, printing machinery, and more. These bearings can easily withstand eccentric loads and axial loads to ensure that the equipment operates smoothly and efficiently.
UD series outer spherical bearings are highly adaptable and suitable for use in harsh working environments common in agricultural and forestry machinery. They provide stable support and transmission to ensure the safe and efficient operation of these machines.
UD series outer spherical bearings are also commonly used in the suspension system, steering system, and engine of automobiles and heavy vehicles. These bearings can withstand various complex loads and impacts to ensure the safe driving of vehicles. They are an essential component for any vehicle.
|
