| Brand Name: | AWX |
| Model Number: | QJ210MA |
| MOQ: | 10pcs |
| Packaging Details: | carton |
| Payment Terms: | T/T, L/C, D/P, Western Union, MoneyGram |

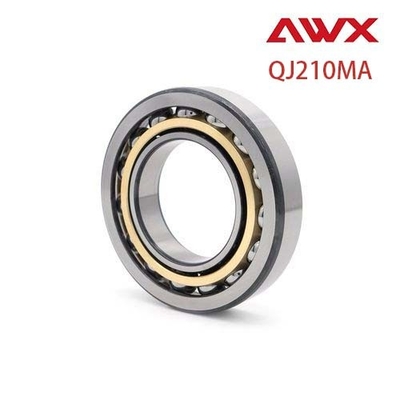

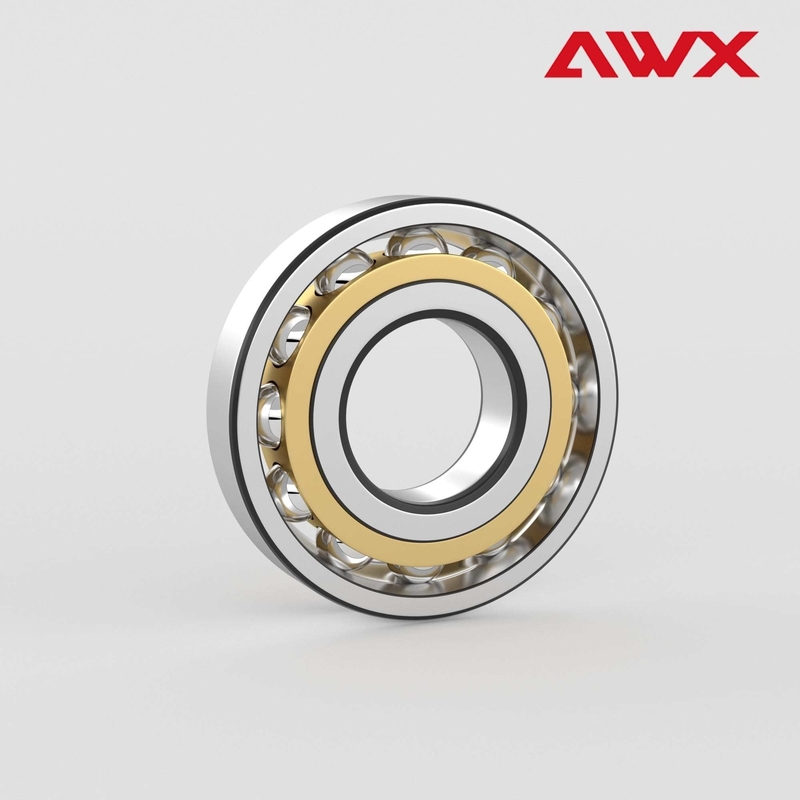

Long Life Angular Contact Precision P6 P5 Accuracy Four-Point Angular Contact Ball Bearings
Angular contact ball bearings can bear radial loads and axial loads at the same time. They can work at higher speeds. The larger the contact angle, the higher the axial load capacity. High-precision and high-speed bearings usually take a contact angle of 15 degrees. Under the action of axial force, the contact angle will increase. Single-row angular contact ball bearings can only bear axial loads in one direction. When bearing radial loads, additional axial forces will be caused. And the axial displacement of the shaft or housing in one direction can only be limited. If installed in pairs, the outer rings of a pair of bearings are opposite, that is, the wide end faces the wide end face, and the narrow end faces the narrow end face. This can avoid causing additional axial forces, and the shaft or housing can be limited to the axial clearance range in both directions.
| Model | Principal dimensions d[in] | Principal dimensions D[in] | Principal dimensions B[in] |
| QJ 304 MA | 0.787 | 2.047 | 0.591 |
| QJ 205 MA | 0.984 | 2.047 | 0.591 |
| QJ 305 MA | 0.984 | 2.441 | 0.669 |
| QJ 206 MA | 1181 | 2.441 | 0.63 |
| QJ 306 MA | 1181 | 2.835 | 0.748 |
| QJ 207 N2MA | 1. 378 | 2.835 | 0.669 |
| QJ 307 MA | 1. 378 | 3.15 | 0.827 |
| QJ 208 MA | 1 575 | 3.15 | 0.709 |
| QJ 308 MA | 1. 575 | 3.543 | 0.906 |
| QJ 209 MA | 1.772 | 3.346 | 0.748 |
| QJ 309 MA | 1.772 | 3.937 | 0.984 |
| QJ 309 PHAS | 1772 | 3.937 | 0.984 |
| QJ 210 MA | 1. 969 | 3.543 | 0.787 |
| QJ 248 N2MA | 9 449 | 17.323 | 2.835 |
| QJ 1252 N2MA | 10.236 | 18.898 | 3.543 |
| QJ 1056 N2MA/C4 | 11.024 | 16.535 | 2.559 |
| QJ 1256 N2MA | 11.024 | 19.685 | 3.543 |
| QJ 1060 MA | 11811 | 18.11 | 2.913 |
| QJ 1260 N2MA | 11811 | 21.26 | 3.858 |
| QJ 1064 MA | 12. 598 | 18.898 | 2.913 |
| QJ 1064 N2MA | 12 598 | 18.898 | 2.913 |
| QJ 1264 N2MA | 12. 598 | 22.835 | 4.134 |
| QJ 1068 N2MA | 13.386 | 20.472 | 3.228 |
| QJ 1268 MA/344524 | 13.386 | 24.409 | 4.646 |
| QJ 1072 N2MA | 14.173 | 21.26 | 3.228 |
| etc | |||
Shandong AWX bearing Co., Ltd. has 5 bearing factories under its registered trademark AWX. Product types: deep groove ball, cylindrical roller, spherical roller, angular contact ball, tapered roller, thrust ball, thrust roller and other bearing products. Product range and precision: inner diameter 50mm-outer diameter 1500mm, mainly high-precision bearings, product precision is mainly P5, SP, P4, UP, P2. Products are used in: precision machine tools, precision equipment, aircraft engines, papermaking, petroleum, metallurgy, mining and other fields.
A: The brand name of this Angular Contact Ball Bearing is AWX.
2. Q: Where is this product manufactured?A: This product is manufactured in China.
3. Q: Does this product come with any certification?A: Yes, this product is CE/ISO certified.
4. Q: What is the minimum order quantity for this product?A: The minimum order quantity for this product is 10pcs.
5. Q: How is this product packaged and delivered?A: This product is packaged in cartons and delivered within 7 days. The supply ability is 1000000.
|
