Product Description:

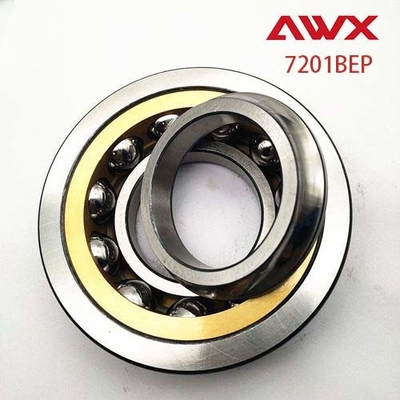

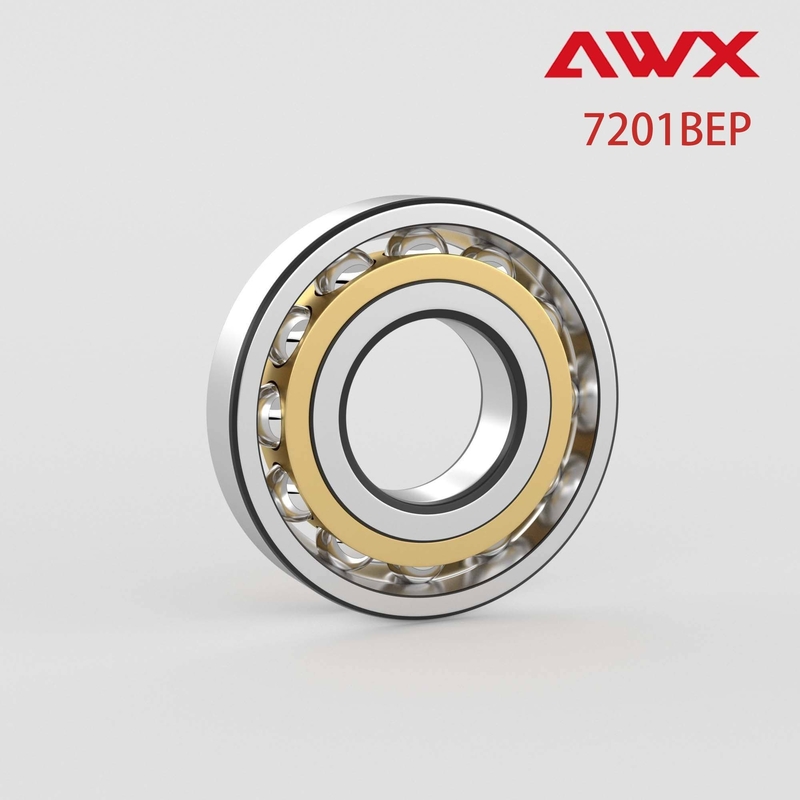

Angular contact ball bearings:

Angular contact ball bearings are primarily designed for carrying large unidirectional axial loads. The load bearing capacity of these bearings increases with the increase in their contact angle. It is essential to select the appropriate cage material and molding method according to the bearing's form and usage conditions. Cage materials such as steel plate, brass or engineering plastics, and molding methods like stamping or turning are available. Other variants of angular contact ball bearings include combined angular contact ball bearings, double row angular contact ball bearings, and four-point contact ball bearings.

Features:

1. Supporting Radial and Axial Loads

Single-row angular contact ball bearings (ACBBs) are capable of supporting both radial loads and axial loads in a single direction. The typical contact angles for ACBBs are either 30° or 40°, offering a great degree of versatility in terms of load-bearing capacity.

2. A Variety of Contact Angles

ACBBs are available in a variety of contact angles to suit different applications. Larger contact angles provide greater axial load-bearing capacity, while smaller contact angles are suitable for high-speed rotations.

3. Adjusting Internal Clearance with Opposed Bearings

Using two opposed bearings can help adjust the internal clearance of ACBBs if needed. Pressed steel cages are commonly used, but for high-precision bearings with contact angles under 30°, polyamide resin cages are the preferred choice.

Technical Parameters:

Applications:

Industrial pumps

Industrial gearboxes

Renewable energy

Compressors

Industrial electric motors & generators

Trucks, trailers and buses

Metals

Company

Shandong AWX bearing Co., Ltd. has a registered trademark AWX and has 5 bearing factories with a total of 180 employees and annual sales of 100 million yuan. The company is a backbone enterprise specializing in the production of reinforced spherical roller bearings, reinforced cylindrical roller bearings, reinforced tapered roller bearings, high-precision machine tool bearings, outer spherical bearings, textile and mining machinery bearings and other products. The company's main business is the research, development, production and sales of deep groove ball bearings, spherical roller bearings, cylindrical roller bearings, tapered roller bearings, and outer spherical bearings. High performance, high precision, high stability and low price meet the needs of domestic high-end customers and truly complete the transformation of replacing imports.
The products are widely used in many fields such as machine tools, elevators, reducers, metallurgy and mining, cement and papermaking, agricultural machinery, heavy machinery, engineering machinery, etc., and the products are exported to Europe, Asia, South America and other countries

FAQ:

Q: What is the brand name of this Angular Contact Ball Bearing?

A: The brand name is AWX.

Q: Where is this Angular Contact Ball Bearing manufactured?

A: It is manufactured in China.

Q: Does this Angular Contact Ball Bearing have any certifications?

A: Yes, it has CE/ISO certification.

Q: What is the minimum order quantity for this Angular Contact Ball Bearing?

A: The minimum order quantity is 10pcs.

Q: How is this Angular Contact Ball Bearing packaged and delivered?

A: It is packaged in a carton and delivered within 7 days. The supply ability for this product is 1000000.
